5.4 Magnetic Field

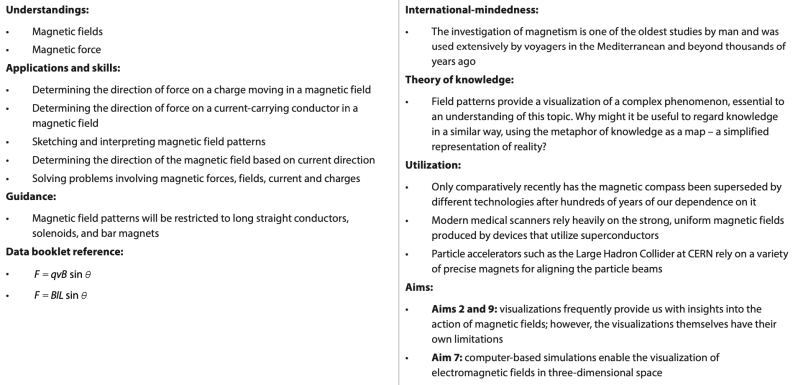

Learning Objectives
![](https://primary.jwwb.nl/public/q/e/c/temp-qxhpqvdlqmczmmnxbocw/4ts8f6/ScreenShot2021-11-21at11620AM.png?enable-io=true&enable=upscale&crop=1908%2C920%2Cx0%2Cy0%2Csafe&width=1070&height=516)
Right Hand Rules - Magnetic Force
![](https://primary.jwwb.nl/public/q/e/c/temp-qxhpqvdlqmczmmnxbocw/79o1i7/ScreenShot2021-11-21at10033AM.png?enable-io=true&enable=upscale&crop=1432%2C442%2Cx0%2Cy0%2Csafe&width=1070&height=330)
- hold your right hand as if you are going to shake hands.
- Place your hand so that the four fingers point in the direction of the field and the thumb in the direction of the velocity.
- The direction away from the palm is the direction of the force.
- hold your right hand as the left picture, but then bend the middle finger at right angles to your palm.
- The middle finger now represents the force, the index finger the field and the thumb the velocity.
- curl the right-hand fingers so that they rotate from the vector v to the vector B
- The direction of the thumb is the direction of the force.
Right Hand Rule - Magnetic Field and Current
![](https://primary.jwwb.nl/public/q/e/c/temp-qxhpqvdlqmczmmnxbocw/jewq3p/ScreenShot2021-11-21at125730AM.png?enable-io=true&enable=upscale&crop=772%2C394%2Cx0%2Cy0%2Csafe&width=523&height=267)
![](https://primary.jwwb.nl/public/q/e/c/temp-qxhpqvdlqmczmmnxbocw/ojhesw/ScreenShot2021-11-21at125738AM.png?enable-io=true&enable=upscale&crop=738%2C398%2Cx0%2Cy0%2Csafe&width=523&height=282)

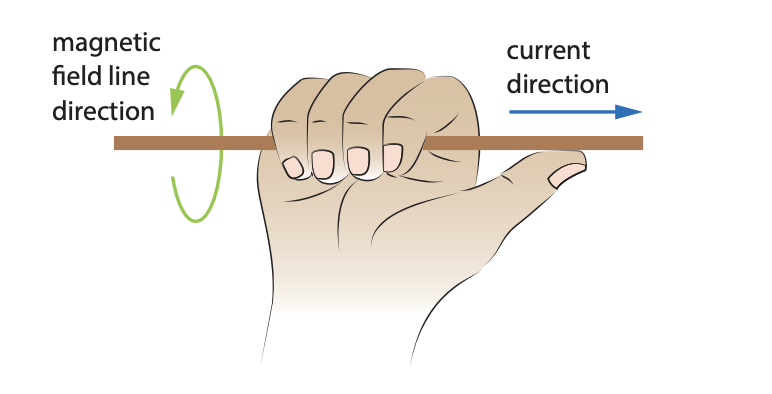

- The right-hand grip rule for the magnetic field around a straight current-carrying wire. The thumb is in the direction of the current. The fingers curl in the direction of the magnetic field.

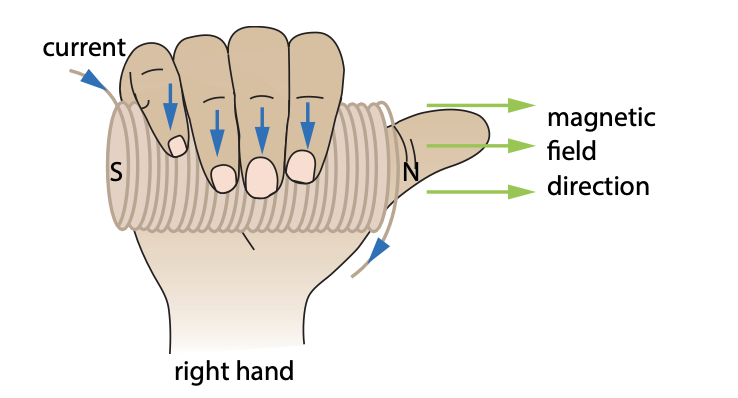

- The right-hand grip rule for the magnetic field around a solenoid. The fingers curl in the direction of the current. The thumb points in the direction of the magnetic field.
